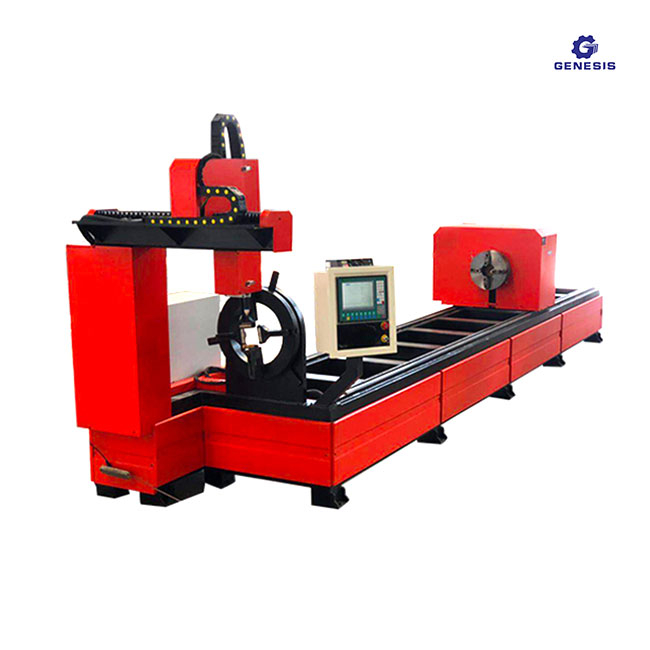

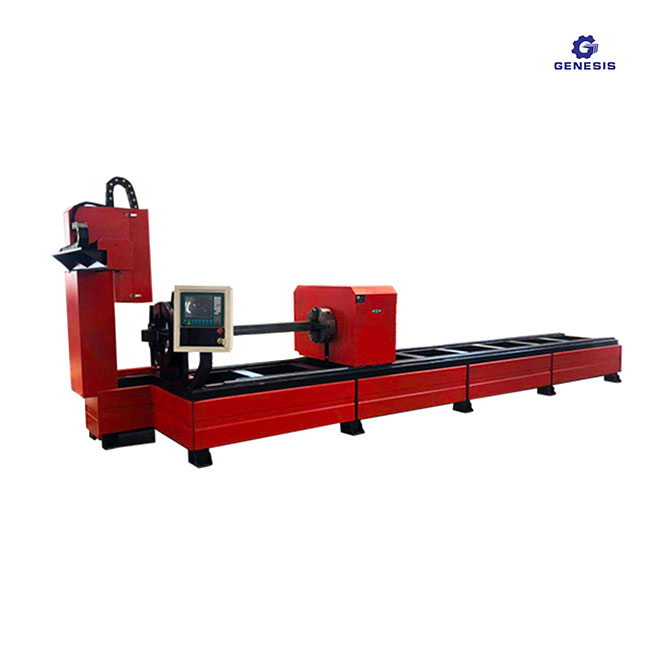

GN3020 Square Round Plasma Cutting Machine

1.Product overview:

1.1 This machine is used for metal square&round tube cutting. Good man-machine control panel makes operation more convenient and simple, can cut kinds of complex shapes' metal sheet.

2.2. The linear rails are imported with high precision, good guide. Rack gear is manufactured by professional factory. Its surface is carbonizing and quenching.

3.3. LCD operate panel can prompt kinds of operating ways, so operator can operate it easily after simple training.

4.4. Driving system is servo or stepper drive, you can choose China LEADSHINE , Japan Panasonic /YASKAWA servo motor or stepper motor to make sure whole machine can run with smoothly in a wider speed range, short acceleration time

5.5. Torch height controller can adjust the best cutting distance automatically, to confirm working piece high precision cutting.

Parameters:

No.	Description	GN3020 (Length 6000 is Optional. Diameter 300mm-500mm is optional)
1	Working Size	200(Diameter)*3000mm(Length)
2	Z Axis Clearance	150mm (200 And Higher Is Optional)
3	Table Type	Chuck rotary
4	Transmission System	Rack Pinion And Hiwin/PMI Linear Rails For X/Y
5	Driving System	Servo motor( YASKAWA/PANASONIC ,also according to your needs and budget.)
6	Max. Cutting Speed	12000mm/Min(different configuration and different material and thickness speed is different)
7	Max. Travelling Speed	30000mm/Min(different configuration speed is different)
8	Working Voltage	380V/3ph(220V/3ph is optional)
9	Plasma Generator	Huayuan China and USA power as your requirements
10	Arc Mode	Jiaoda fangling
11	Output Current	63/100/120A/160A/200A China (45/65/85/105/125/200A USA)
12	Max. Cutting  Thickness	6/15/18/20/30mm (This is approximate,It also according to power and kinds metal)
13	Operating System	JiaoDa fangling FX430A controller (Professional for tube cutting)
14	Working Material	Steel, Aluminum, Galvanized Sheet, Titanium Plate,   Platinum Plate and almost all of the metal square tube/Circle tube

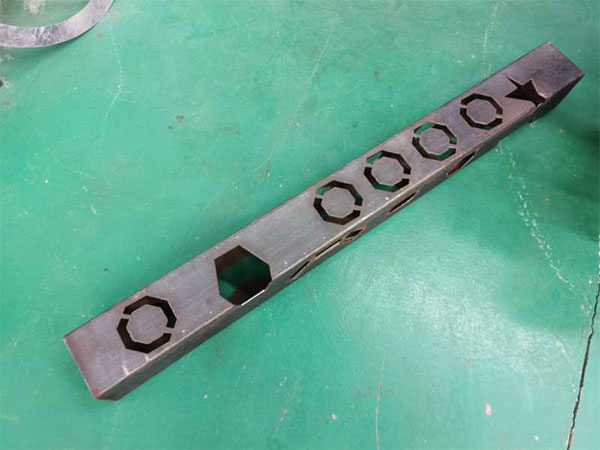

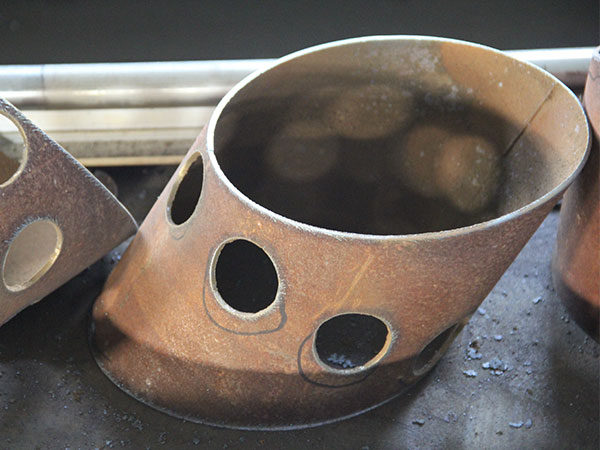

Sample

Remark:

1. Installation guide and manual and tool kit will be sent to Buyer with machine.

2. All spare parts on machine we take use high quality and professional installation.

3. Machine has been tested for 72 hours without stop before delivery.

4. CE authorized, ISO9001, FDA, GENESIS strictly carried out.

Guarantee & After Sales Service:

1. 24 months quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge when problems happened during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5.12 hours on line service each day, free technical support.
