Product Description

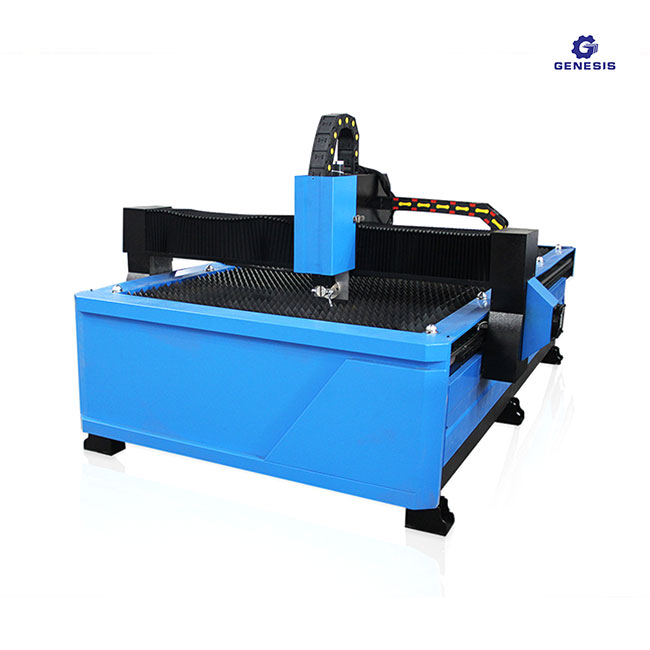

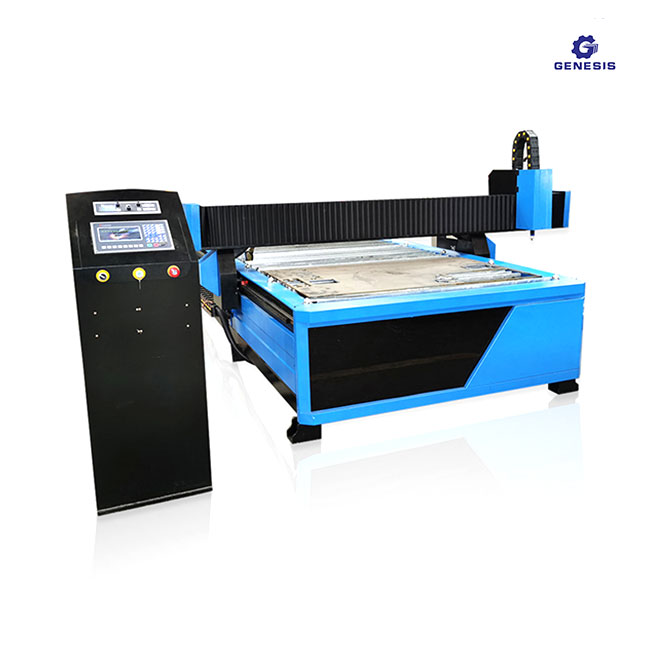

GN1325/GN1530 Plasma cutting machine
Product features
*Welded lathe bed of thick-wall profiled steel, more solid and stable.
*Reasonable lathe table design, 10 mm thickness steel plates fixed on lathe table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame. The level difference of whole double-deck platform remains in 0-1.5mm.
*Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.
*Panasonic Servo motor, Taiwan servo speed reducing device and high accuracy rack transmission.Lower noise, stable and accurate coordinate movement.
*China made Huayuan Plasma source or American hypertherm plasma source together with high sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy.
* Best choice for all kinds of different thickness material and heterotypic sheet cutting.
Applicable materials:
metal sheets such as Iron sheets ,Aluminum sheets ,galvanized sheets,Tianium plates
Technical parameters:
Model | GN1325 |
Working area(customizable) | 1300mm*2500mm |
Processing thickness | 0.5-30mm |
Power | 8.5KW-10.5KW |
Working voltage | AC 220V/380V 50HZ/60HZ |
Cutting speed | 0-8000mm/min |
Traveling speed | 0-50000mm/min |
Plasma current | 45A-200A |
Plasma source brand | China Huayuan /USA Hypertherm |
Power frequency | 50HZ |
File transfer | USB |
Controller | Beijing Starfire(Beijing Start optional) |
Torch Height controller(THC) | HYD |
Work mode | Non-contact arc striking |

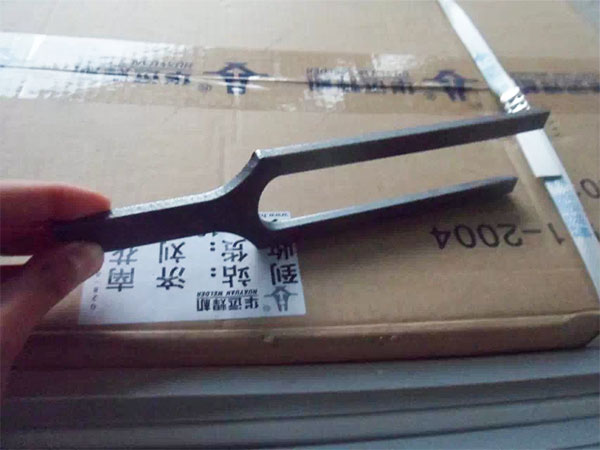

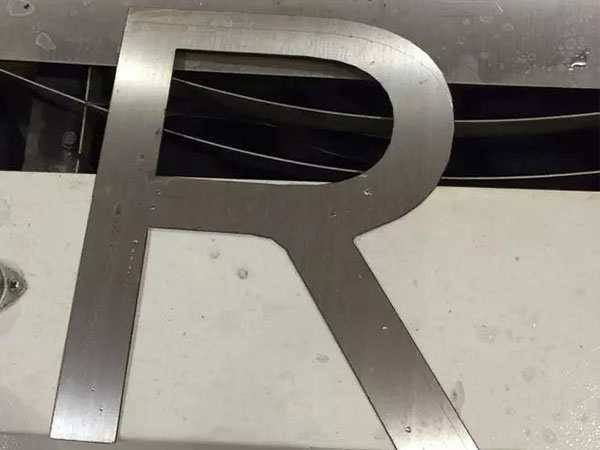

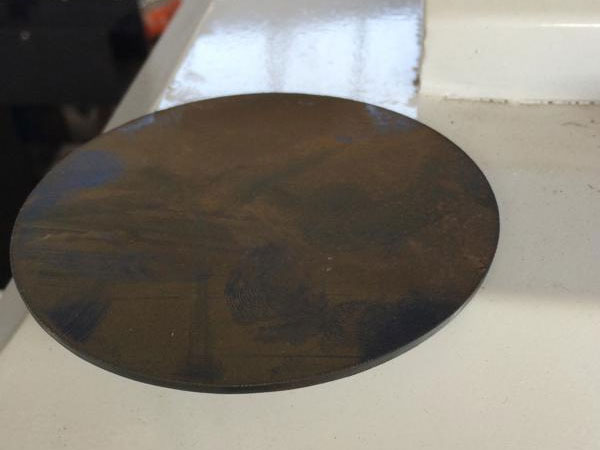

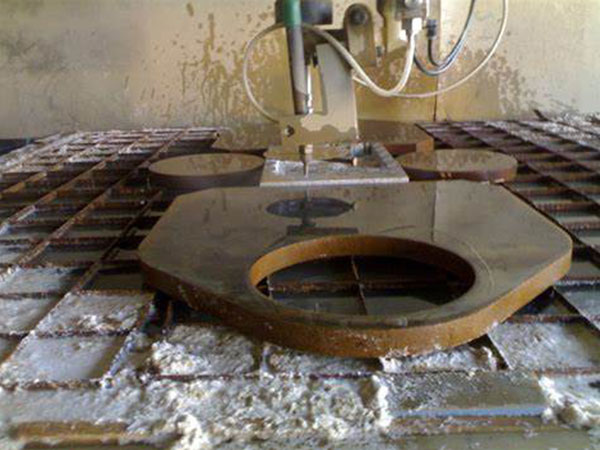

Sample
Remark:
1. Installation guide and manual and tool kit will be sent to Buyer with machine.
2. All spare parts on machine we take use high quality and professional installation.
3. Machine has been tested for 72 hours without stop before delivery.
4. CE authorized , ISO9001, FDA, GENESIS strictly carried out.
Guarantee & After Sales Service:
1. 24 months quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5.12 hours on line service each day, free technical support.
