GN Series Gantry Structure CNC Flame Plasma Cutting Machine

Product overview:

Economical gantry CNC flame plasma cutting machine includes numerical control system, drive system, control system,mechanical system, pneumatic system. This machine is mainly used for sheet metal flat flame plasma cutting of various shapes,complete functions,high degree of automation,advanced configuration,high cutting precision,good quality,good dynamic stability. CNC system, servo system adopts domestic and foreign well-know brands,products with excellent properties and convenient man-machine interface,friendly operation,abundant software and hardware configuration,high quality comprehensive protection measures to provide users with a high quality product.

Product features:

1. Main Frame: All frames adopt 8mm thickness steel plate, making sure high mechanical strength and deformation resistance to guarantee the cutting precision.

2.Front Beam adopt 20mm thickness steel plate and processed by large cnc milling machine at one time which increase flatness and smoothness of surface to ensure the cutting  precision.

3.The gear rack groove and guid rail groove on the front beam are processed by cnc milling machine at one time, which make sure plasma and frame torches move stable and cut accuracy.

4.Hollow Design: The beam adopts hollow design to avoid frame deformation caused by heat .

Technicial Parameters:

No	Item	Parameters
1	Effective cutting range	2000*6000mm or customized size
2	Cutting methods	Plasma and Flame
3	Plasma power source	Hypertherm or Huayuan
4	Cutting torch lifting distance	200mm
5	Flame cutting speed	0-2000mm/min
6	Plasma cutting speed	0-6000mm/min
7	Auto-precision	≤±1.0mm
8	Longitudinal linear precision	±0.2mm/10m
9	Working language	G Code
10	Document Transmission	USB Interface
11	Nesting software	Fast cam or StarCam
12	Working Voltage/Frequency	3-Phase 380V±10%/50HZ 220V±10%/50HZ

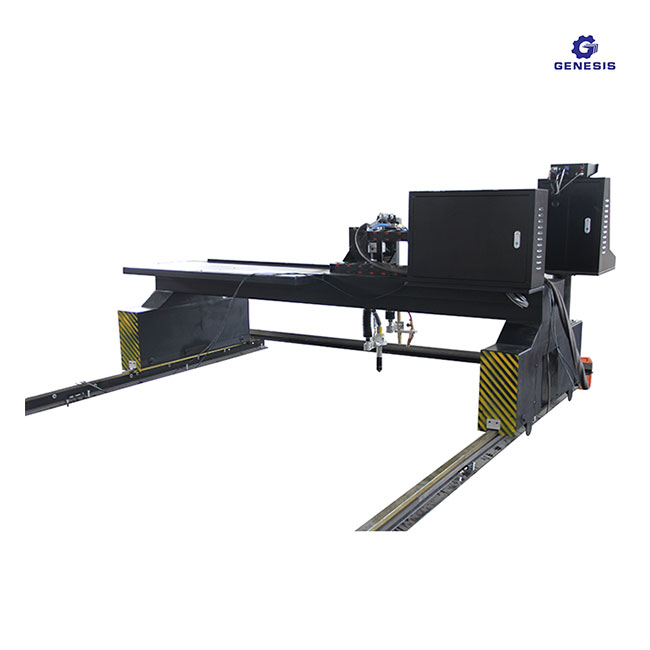

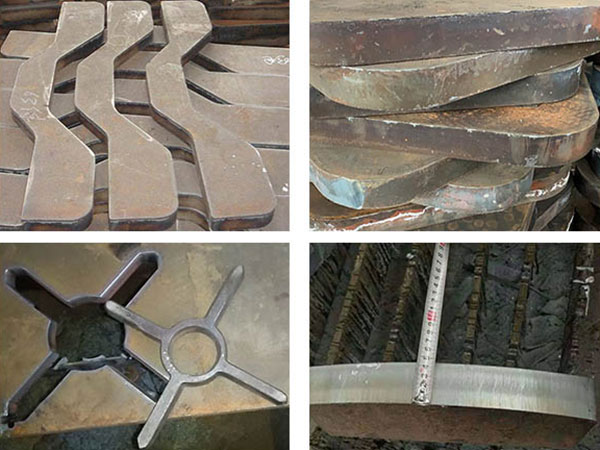

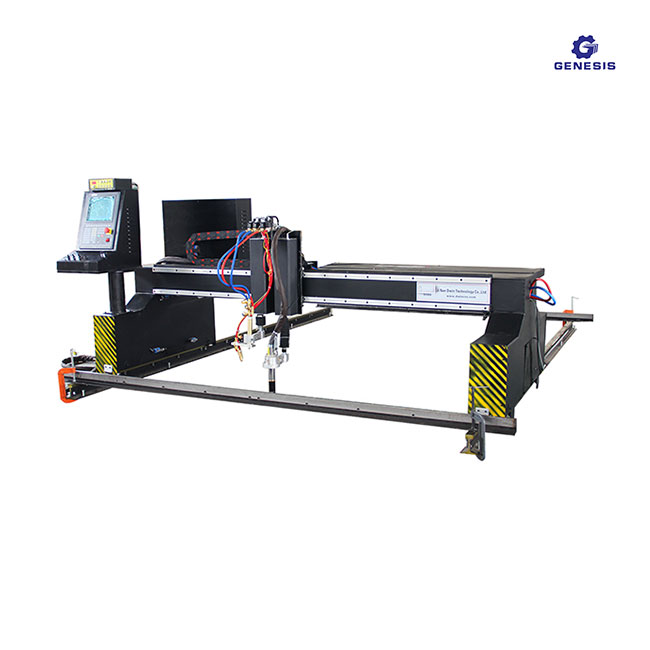

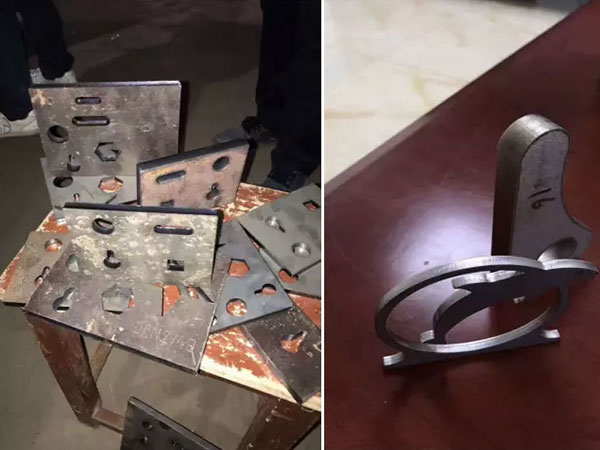

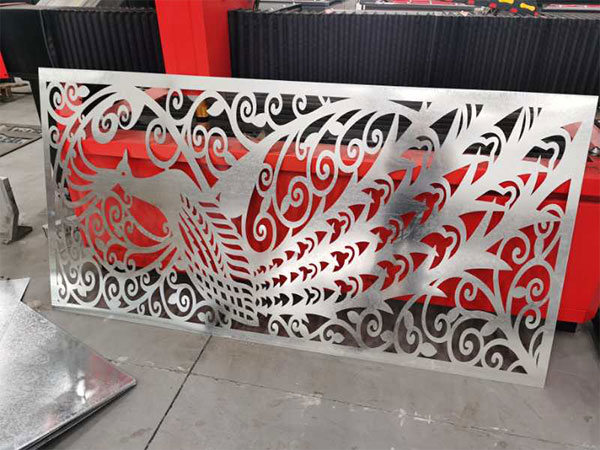

Sample

Remark:

1. Installation guide and manual and tool kit will be sent to Buyer with machine.

2. All spare parts on machine we take use high quality and professional installation.

3. Machine has been tested for 72 hours without stop before delivery.

4. CE authorized , ISO9001, FDA, GENESIS strictly carried out.

Guarantee & After Sales Service:

1. 24 months quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge when problems happened during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5.12 hours on line service each day, free technical support.
