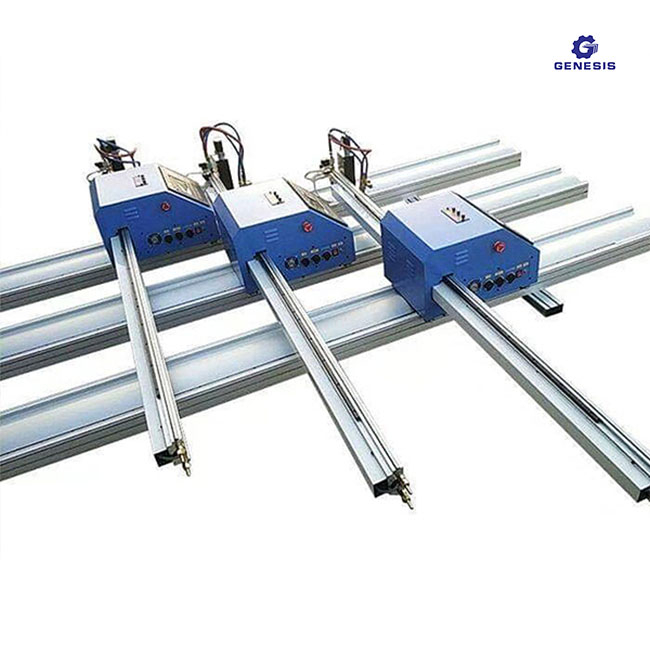

GN1530 Portable Plasma + Flame Cutting Machine

Model:GN1530

Optional Model:GN1325/1525/2030/2040 etc. (Supposed Customized!)

Portable plasma +flame cutting Machine.

Effective Cutting Range: 1500x3000mm. (We supply customized service for you Specially!)

Plasma cutting thickness:1-20mm(based on plasma source)

Flame Cutting Thickness: 20-150mm, Max. 200mm.

Supporting Cutting: Flame and Plasma (Plasma Arc Cutting Equipment).

Flame(gas) Cutting Gas: LPG/Coal gas, Propane, Acetylene + Oxygen.

Plasma Cutting Equipment: Plasma Arc Cutting Equipment (80amps-LGK80, 100amps-LGK100/CUT100, 120amps-LGK120).

Plasma Cutting Thickness: 80amps (1-8mm Piercing Cutting), 100amps (1-12mm/15mm Piercing Cutting). supporting Hypertherm, Huayuan etc plasma brand

Automatic Plasma Torch Height Control. FastCAM Nesting Software.

propane nozzle and other accessories.

Portable plasma+flame cutting machine parameters:

Working size	1500*3000mm
Cutting speed	0-2500mm/min
Cutting thickness (flame)	30-150mm
Cutting thickness (ion)	1-6mm
Applicable gas type	Acetylene, propane, methane
Built-in	3000 kinds of optional graphics
RAM	2G can store CAD drawings
Controller	torch height controller/starfire controller
Software	FastCAM
File transmission	USB transmission
Plasma Air Pressure	Max. 0.8Mpa
Rated Power Supply	200W
Control accuracy	±0.01mm
Working Temperature	-10°C-60°C. Relative Humidity, 0-95%

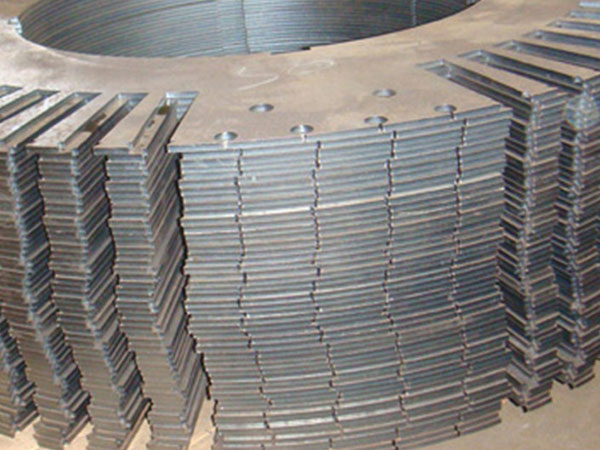

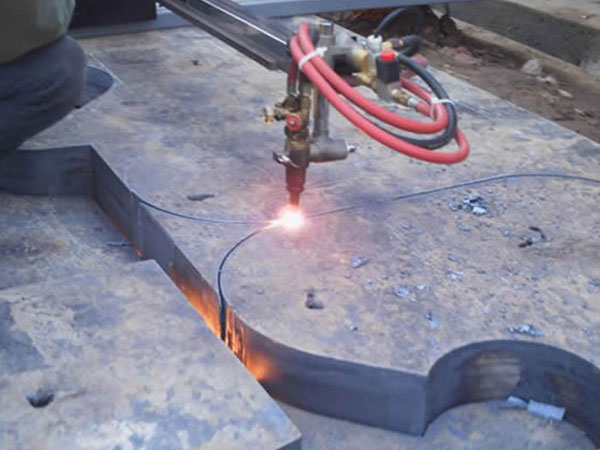

Sample

Remark:

1. Installation guide and manual and tool kit will be sent to Buyer with machine.

2. All spare parts on machine we take use high quality and professional installation.

3. Machine has been tested for 72 hours without stop before delivery.

4. CE authorized , ISO9001, FDA, GENESIS strictly carried out.

Guarantee & After Sales Service:

1. 24 months quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge when problems happened during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5.12 hours on line service each day, free technical support.
