Product Description
Features:

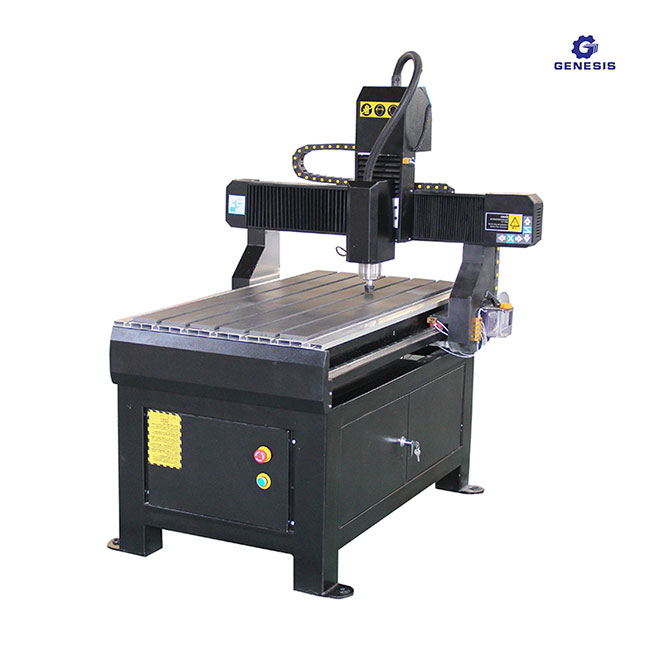

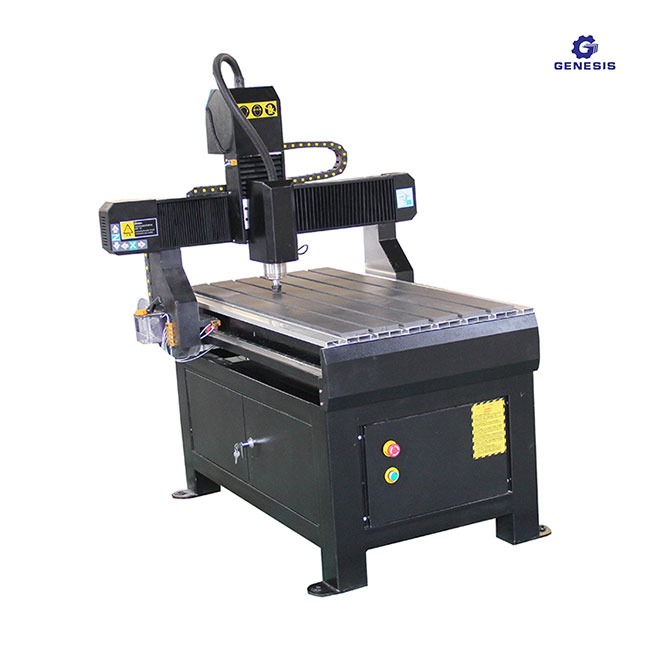

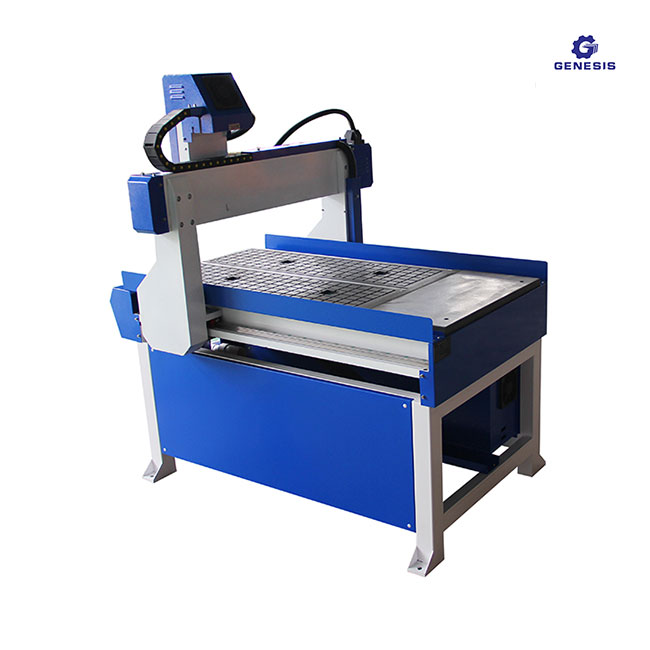

1. Economy cnc router machine with heavy duty welded structure.
2. water cooling spindle with 24000r/min.it is good effect for cooling.
3. NC studio Controller ;computer operation ;convenient and intuitive.
4. HIWIN linear rail from Taiwan for 3 aixs, more stable, it's lifetime is 10 times longer than common rail way.
Application of cnc wood router machine
Advertising industry: acrylic cutting, MDF engraving cutting and engraving, wood decoration products making.
wood door: MDF and wood door engraving
wood furniture: cabinet door making with complicated design, Panel furniture: wood panel cabinet making
Recommend :This machine is suitable for engraving and cutting of small size non-metal in advertising industry .
Applicable material:
PVC board, ABS, double-color board, Acrylic, MDF, Stainless steel, copper, aluminum, zinc etc.
Standard parameter:
Working Table Size(mm) | 600x900x200mm |
Travel (X Axis)(mm) | 600mm |
Travel (Y Axis)(mm) | 900mm |
Repeatability (X/Y/Z) (mm) | 0.03mm |
Z axis height | 200mm |
Table type | Aluminum T-slot table with PVC |
Spindle power | 1.5kw/2.2kw/3kw water cooling spindle |
Collet | ER16/ER20 |
Transmission | TBI Ball Screw for x y z axis |
Guide rail | Hiwin square guide rail |
Driving system | Leadshine stepper motor and driver |
Control system | Nc studio/Mach3/DSP Control System |
Software | Artcam |
Working speed | 0-7000mm/min |
Traveling speed | 0-7000mm/min |
Voltage | 220V/PH |

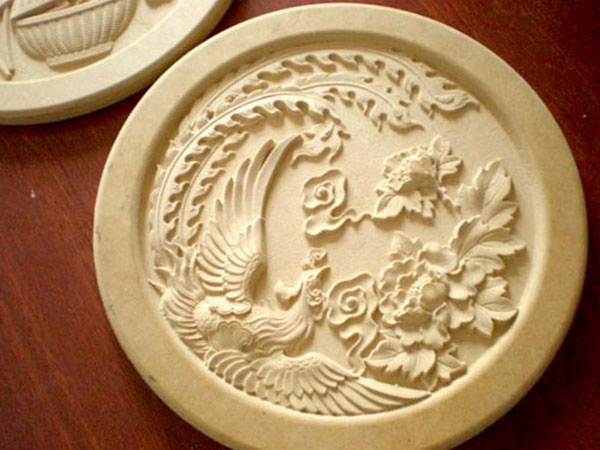

Sample
