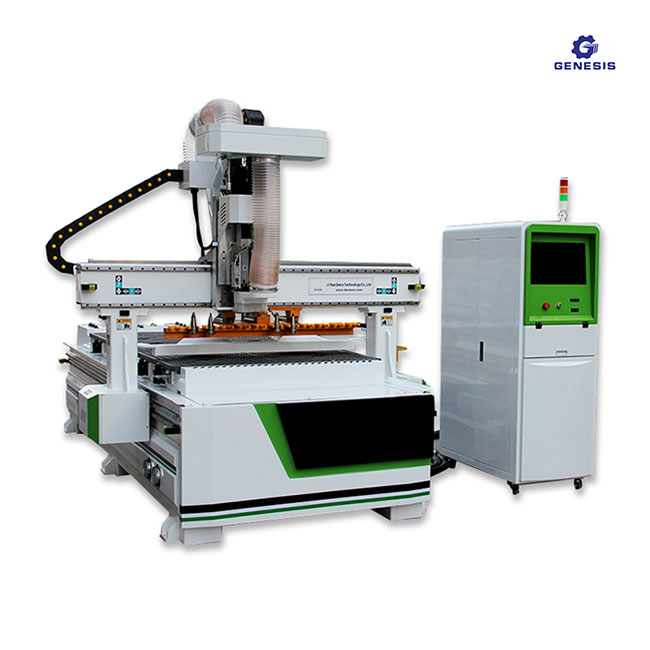

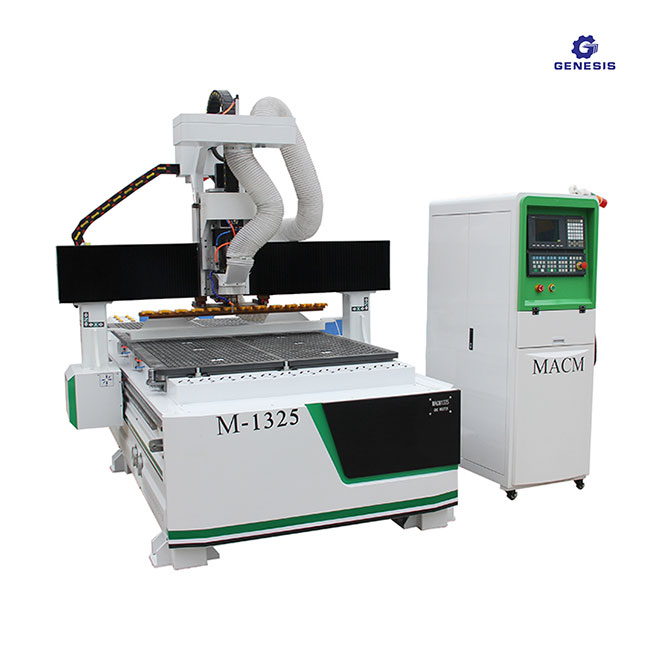

Product Description
Features:
1). Adopt linear-square orbit, whole machine is welded with seamless steel structure, can heavy loading.
2). Taiwan HIWIN square guide rail, ball screw for z axis and gear-wheel for x and y axis
3). Taiwan Syntec control system. Bus control, namely a line control all drives, convenient maintenance.
4). air cooling spindle ( 0-24000rpm )
5). Automatic tool change, convinient and swift
6). With better compatibility, can math with many programs such as Type3, artcam, castmate, CAM, etc.
Applicable industries:
1) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors
and windows.
2) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
3) Plate processing: insulation part, plastic chemical components, PCB, inner body of car,
bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon
mixed compounds.
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft
metals such as copper, aluminum plate engraving and milling process.
Material:
Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Mainly specification:
Working area | 1300*2500*200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03/300mm |
Table Surface | T-slot & vacuum table |
Frame | Big Steel tube structure |
X, Y Structure | Hiwin Rail Linear Bearings |
Z Structure | Hiwin Linear Bearings and Ball Screw |
Max. Rapid Travel Rate | 35000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 9KW HQD air cooling spindle |
Spindle Speed | 0-18000RPM |
Drive Motors | Yaskawa servo motor |
Working Voltage | AC220V/50/60Hz,3PH (Option: 380V) |
Command Language | G code |
Operating System | Syntec /NK280B control system |
Computer Interface | USB |
Guarantee | 18months |

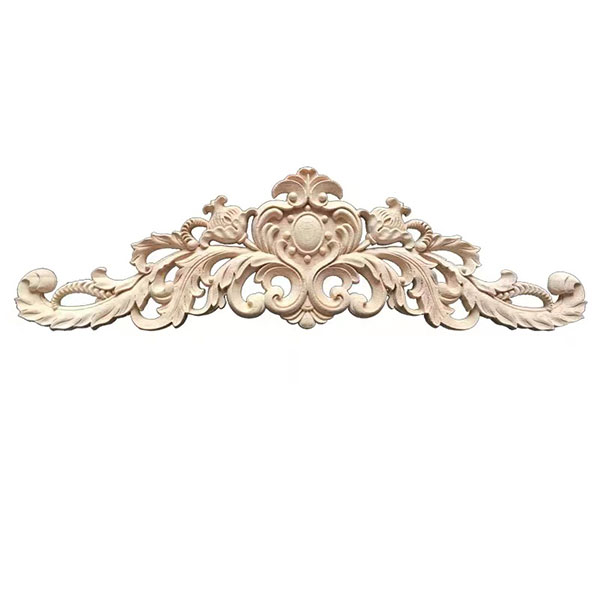

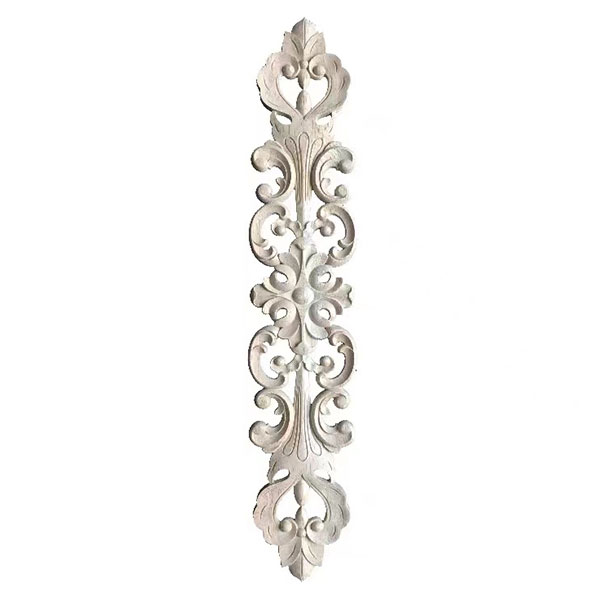

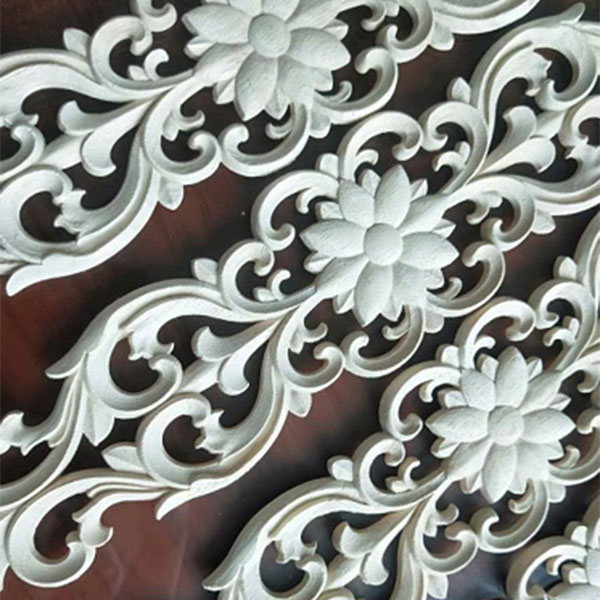

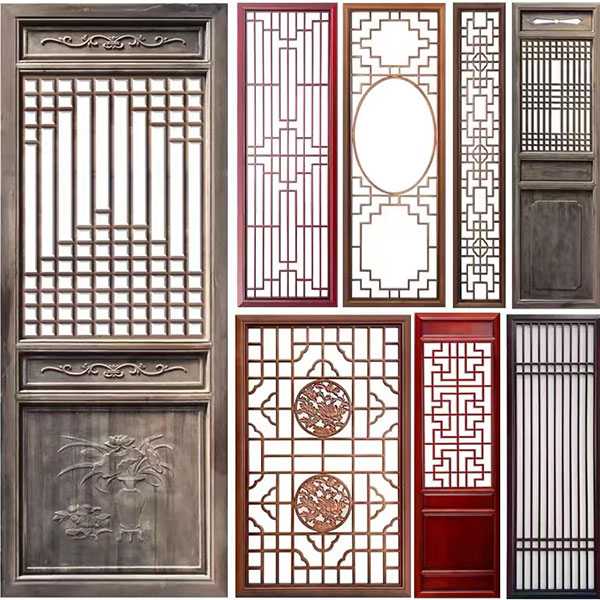

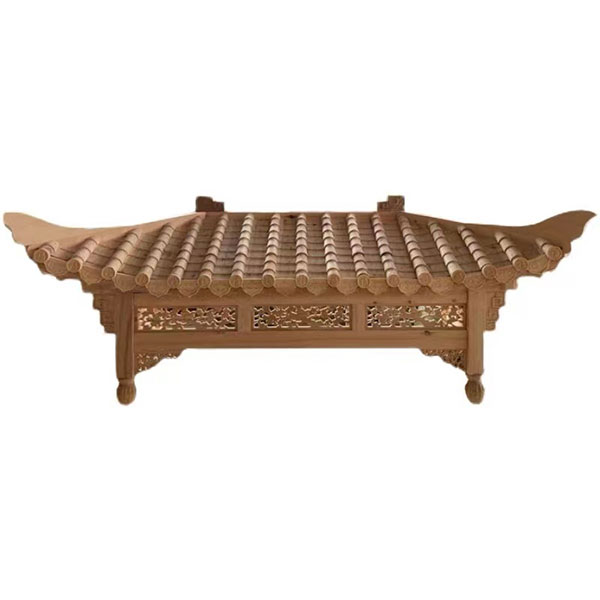

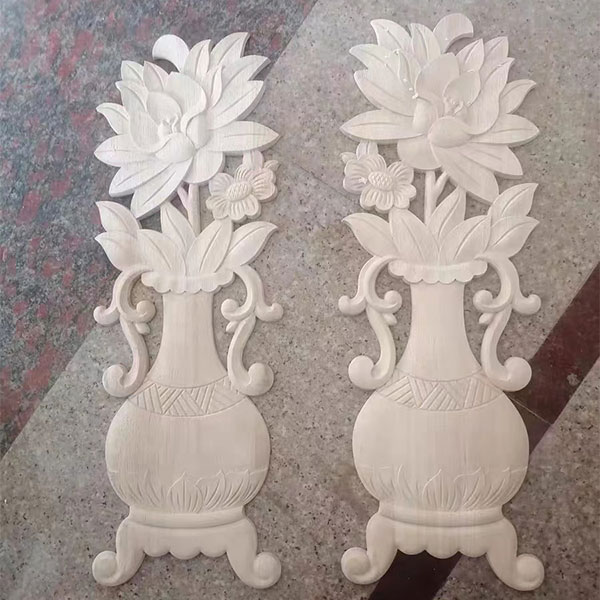

Sample
