Product Description
Mainly features :
1.Vacuum table with 6 vacuum zones, which can absorb different size materials, no oil vacuum pump, high suction, more convenient,stable capability.
2. HIWIN square orbit, double slippers, bearing heavy, working steadily, high precision, and long life time, import ball screw,high precision for cutting.
3. High speed stepper motor and drivers, and tow motors for Y axis. Max speed is 25M/MIN. With water cooling spindle highly upgrade the processing speed.
4. The optional equipment for spindle is Japan imported high power water cooling motor (Japan NSK bearing) high speed spindle,stable capability.
5. three Pneumatic spindles, changing different tools by changing the spindles automatically one by one.
6. Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/Castmate/Ucancam etc..
Application industries:
1. wood door and furniture decoration industry solid wood compound door, cabinet door, large area plate plane carving, solid wood carving, board furniture carving, antique mahogany furniture carving, solid wood art fresco carving and other industries.
2. wooden handicraft processing clock frame, process photo frame, calligraphy card, electrical counter Surface, sports equipment, thin aluminum plate carving.
Material:
Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Description and Specifications | |

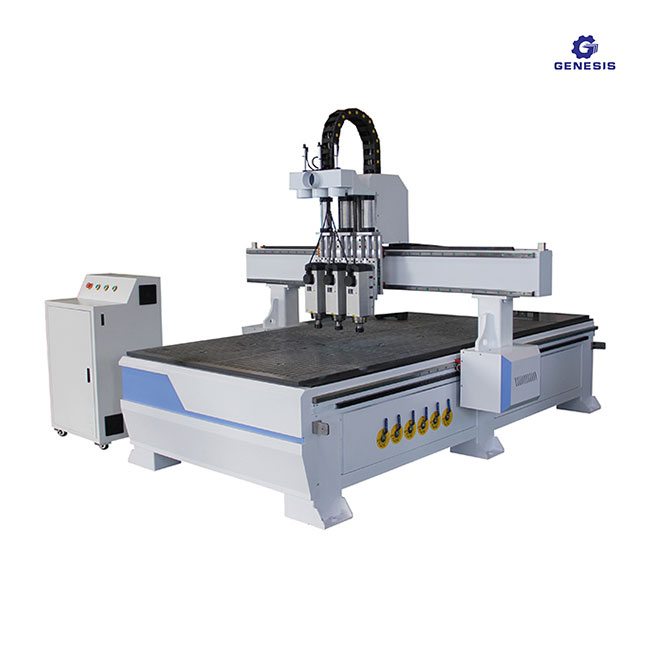

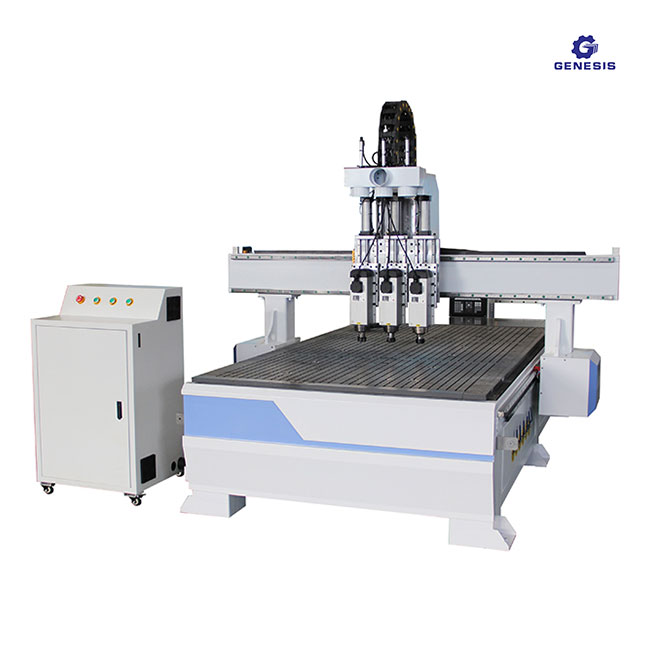

Model NO. | GN-1325 MULTI-HEAD CNC ROUTER |
X, Y, Z Traveling Area | 1300mm*3500mm*200mm |
Table Size | 1340mm*4000mm |
Packing Dimension | 4500mm*2150mm*1900mm |
Package | Fumigation-free wooden box packaging |
Net Weight/Gross Weight | 1500KGS/1800KGS |
Machine Color | Optional |
Processing Accuracy | ±0.025mm |
Reposition Accuracy | ≤0.025mm |
Table Structure | Vacuum Table |
Lathe Bed Structure | Heavy structure |
X Y Transmission | Rack Gear |
Z Transmission | Germany Ball Screw |
X Y Z Guide Rail | TAIWAN HIWIN Square Rail 30mm |
Max. Traveling Speed | 50m/min |
Max. Working Speed | 38mm/min |
Spindle Power | 3.5kw air cooling spindle*3 |
Max. Spindle Speed | 0-18000RPM |
Inverter | Fuling Inverter |
Driving Mode | Leadshine stepper motor driver |
Driver Motor | Leadshine stepper motor |
Command Language | G Code, HPGL |
Control System | Mach3/NK280/syntec |
Working Voltage | AC380V, 50HZ |
ATC System | 3 heads work one by one automatically |
Interface | USB |
Flash Memory | 128M(U Disk) |
Operation Software | Artcam, Type3 |
Sample
