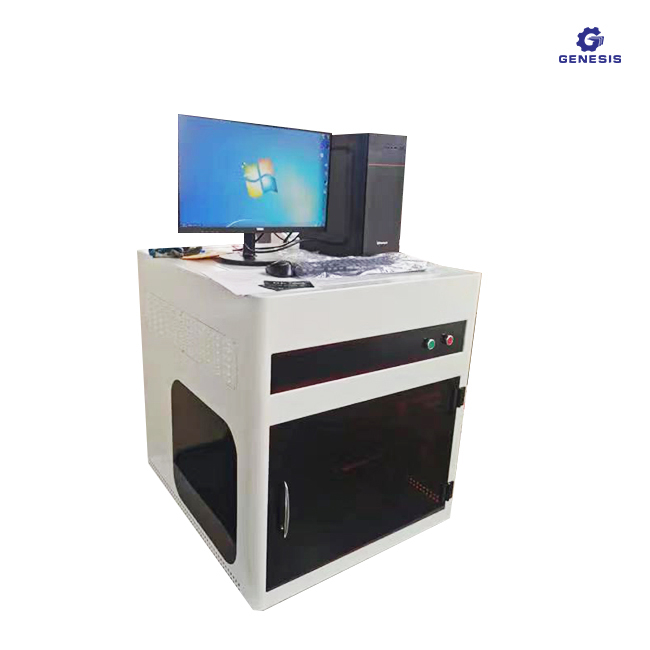

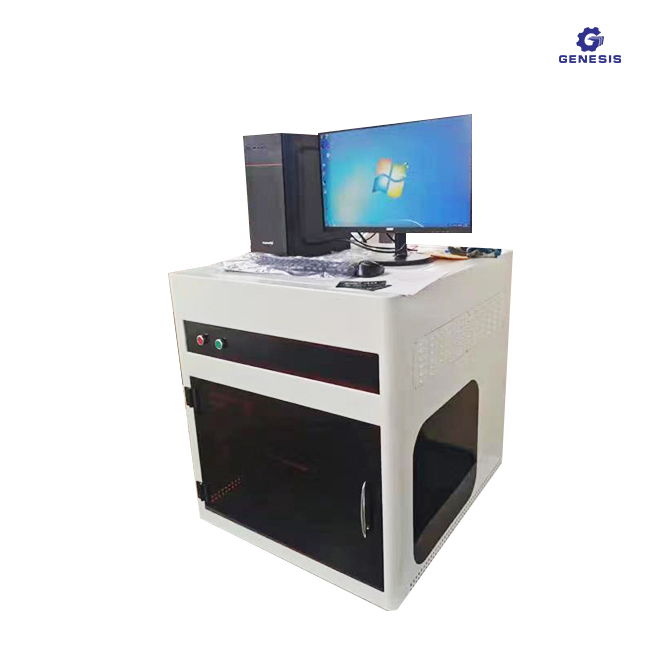

GN-5KD 3D Crystal Laser Internal Engraving Machine

Features:

1. This machine used metal structure body, durable in use.

2. it include 2D to 3D software, it have inside laser engraving and material surface engraving function

3. The automatic laser positioning system is configured so that the 3D laser crystal engraving machine can track the optical path. And a high-precision motion control system is adopted to ensure the high-quality engraving operation of the finished product.

4. 3D laser crystal engraving machine is easy to maintain, the laser collimation technology and closed control system can be 24 hours of continuous operation.

5. Easy to operate. Adopt humanized system, with "one-click" control sculpture to complete all the work functions to reduce the loss caused by manual operation errors.

6. Inside crystal carving and material surface text's speed is extremely high.

Applicable Industries

3D laser crystal engraving machine is used to engrave 2D or 3D design inside of crystal, glass, acrylic and other transparent material. 3D laser crystal engraving machine can carve 2D or 3D portrait, hand or footprints, trophy and other personalized souvenirs.

Suitable Materials

crystal, glass, acrylic, decoration materials and other apparent materials.

Technical parameter:

Item No. Techinal Index	GN-5KB
Laser	ND:YAG Diode Pumped
Laser frenquence	5000Hz
marking speed	280,000dots/min
maximum engraving area	320*400*150mm
Machine size	800*900*980mm
Packing size	900*1020*1400mm
Accuracy	20um-40um
Repeat Offset	10-20um
Laser/Laser wavelength	Semiconductor DIODE/532NM
Focus Length	100mm
working/ beam quality	with high speed scanner+X+Y+Z(5axis)
continous working time	24hours
cooling/quality warranty	air cooling/ one year
life time	25,000 working hours
Voltage	single phase 220v or 110v(+/- 10%). 50hzor 60hz
Power	<350w
Weight	280kg
2D to 3D Software	include
file format	JPG, BMP, DWG, DAT, AI, DXF ,OBJ,WRL,STL,3DS
suitable material	All transparent materials
working environment	temperature 10-28℃, humidty ＜70%, non-condensed

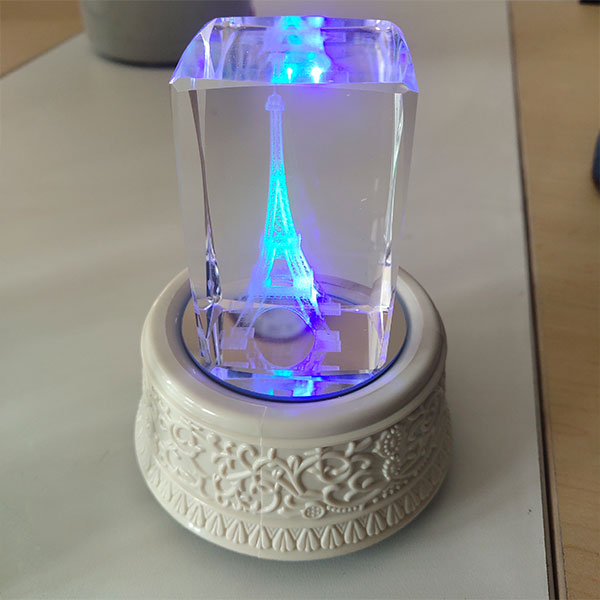

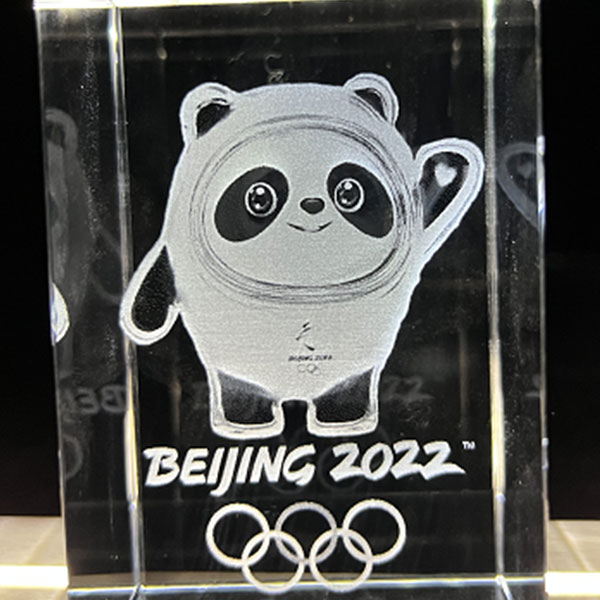

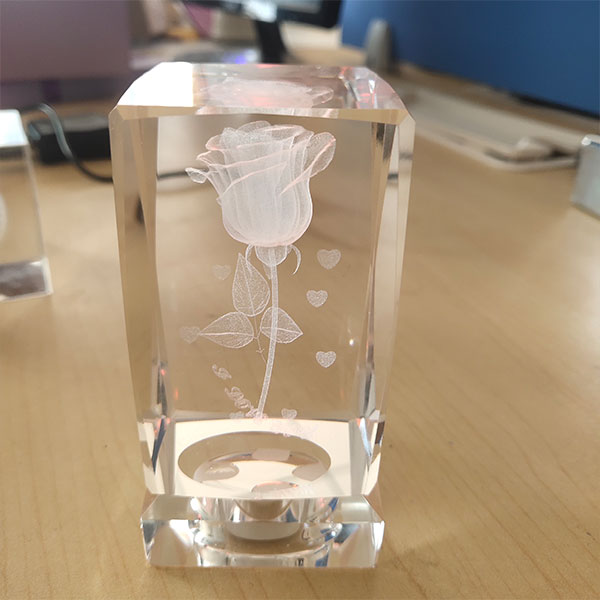

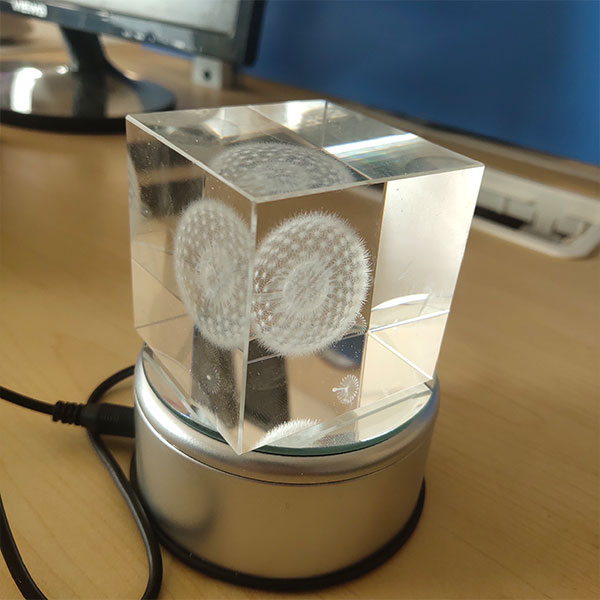

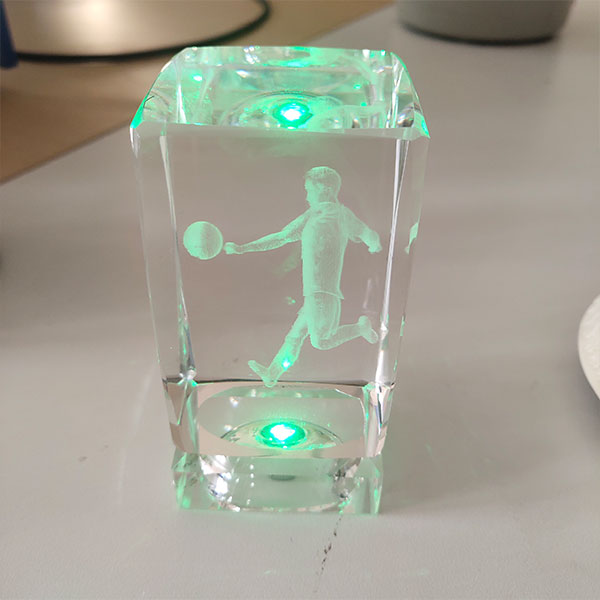

Sample
