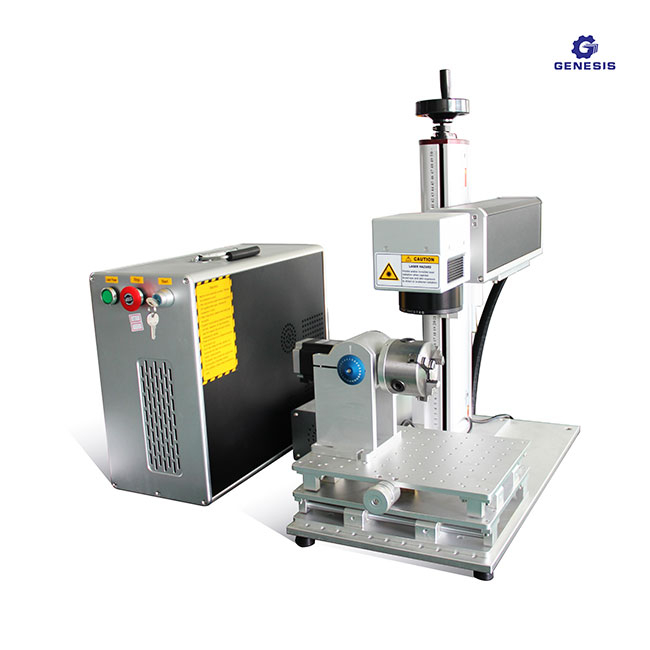

Product Description
1. High electro-optic conversion efficiency;
2. Low power consumption, stability laser output;
3. High quality beam, consumable free,small machine dimension ;
4. Smaller output laser beam , finer marking line.suitable high precision marking
Machine models | GN-F20W | GN-F30W | GN-F50W |
Laser source | 20W | 30W | 50W |
Laser source brand | Raycus, IPG, Maxphotonics etc. | ||
Marking speed | ≤8000mm/S | ||
Marking area | 110*110mm(option:150*150mm,200*200mm,300*300mm) | ||
Max.Marking Depth | ≤0.4mm | ||
Laser Wavelength | 1064nm | ||
Marking lines | 1-10 marking lines(in the marking area) | ||
Minimum line width | 0.01mm | ||
Minimum character | 0.15mm | ||
Resolution ratio | 0.01mm | ||
Repeatability accuracy | ±0.002mm | ||
Unit Power | ≤500W | ||
Graphic format supported | BMP,JGP,PNG,DXF, etc. | ||
Supply Voltage | 110V/50HZ/10A(option:220V) |
Materials: any metal (including precious metals), engineering plastics, plating, coating materials, spray material, plastic, rubber, epoxy resin, ceramic, and other materials.
Industry: the phone keypad keys translucent plastic, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses, clocks and watches, jewellery, automobile accessories, bags decorated clasps, cookers, stainless steel products and other industries.

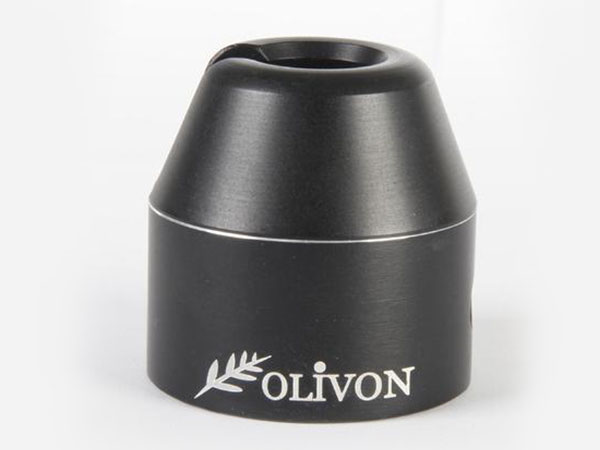

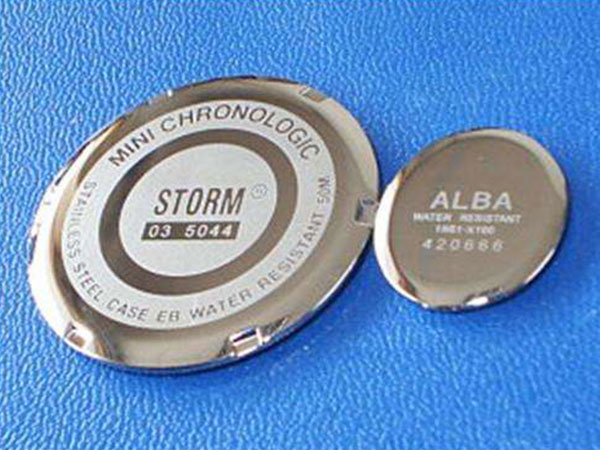

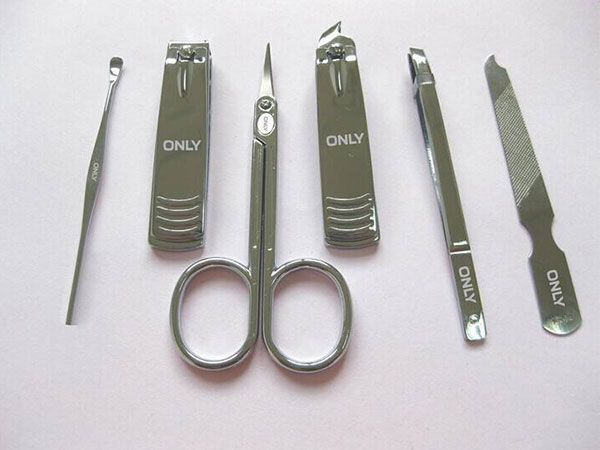

Samples
